Multi-Network Support
Supports the cellular bands used for GSM, 3G, 4G and 5G services according to the selected Titan model and local operator spectrum.
Titan iRepeater
RED Certified Full Band Uygun Geniş Repeater
GSM | 3G | 4G | 5G
B1 | B3 | B7 | B8 |B20 | B28
COMMERCIAL-GRADE CELLULAR REPEATER
Stella Doradus Titan iRepeater
RED-certified full-band repeater for professional indoor mobile coverage
GSM | 3G | 4G | 5G · B28 | B20 | B8 | B3 | B1 | B7
Stella Doradus Titan iRepeater is a commercial-grade cellular repeater platform for large buildings and multi-zone indoor coverage systems. It amplifies supported operator bands and can be remotely monitored, managed and adjusted through the StellaControl platform.
Four indoor antenna ports allow RF coverage to be distributed into separate building areas. For larger, multi-storey or multi-zone projects, the Titan system can be expanded with LineAmps and suitable passive RF distribution components.
Extended Warranty Options
Extended support packages are available for selected projects and can increase the warranty period according to the applicable programme.
BağLAN Technical Support
Product selection, RF planning, antenna distribution, commissioning and project implementation support for professional repeater systems.
SYSTEM OVERVIEW
Titan iRepeater Features and Models
The Stella Doradus Titan iRepeater platform combines full-band amplification, network-protection functions, PortSense, cell scanning and remote monitoring in a modular repeater architecture.
- RED-certified full-band repeater platform for professional cellular coverage projects.
- Supports all operators using the frequency bands included in the selected model.
- PortSense technology for continuous antenna and cable connection checking.
- Automatic RF-control functions designed to help protect the mobile network.
- Support for GSM, 3G, 4G and 5G services on the amplified bands.
- Remote monitoring and management through StellaControl.
- LCD touchscreen models for local visual status and control.
- The RF repeater function does not require a customer SIM card or fixed internet connection.
| Model | Supported Bands | PortSense | Monitoring | Cell Scan |
|---|---|---|---|---|
| iR6-T | B28 / B20 / B8 / B3 / B1 / B7 | Yes | Yes | Yes |
| iR4-T | B28 / B20 / B8 / B3 | Yes | Yes | Yes |
CARRIER AGGREGATION
Multi-Band Amplification for Carrier Aggregation
Carrier Aggregation allows compatible mobile devices and operator networks to use two or more frequency bands at the same time. By amplifying multiple cellular bands within the same indoor coverage system, Titan helps preserve the frequency layers used by the operator for CA combinations.
Under suitable network conditions, this can support higher available bandwidth, improved capacity and a more robust indoor mobile connection.
SMART INSTALLATION AND MONITORING
PortSense, Cell Scanning and Remote Management
The Stella Doradus Titan iRepeater integrates installation diagnostics and continuous monitoring functions that help installers verify the RF hardware, review the outdoor cellular environment and manage the repeater remotely.
PortSense
PortSense detects antenna connections on the repeater ports. Compatible Smart Antennas and repeater-port LEDs provide immediate visual confirmation of correct cable and antenna connections, while status can also be monitored through StellaControl.
Cell Scanning
The internal modem allows periodic Cell Scan measurements of the exterior RF environment, helping installers review nearby cells and track changes in the available donor signal.
Embedded Modem and SIM
Titan includes an embedded cellular modem and SIM for StellaControl connectivity. This monitoring connection is separate from the repeater's RF amplification function.
Remote Monitoring
StellaControl provides remote access to system status, supported performance parameters, history and alerts so that maintenance visits can be planned more efficiently.
PLANNING · MONITORING · MODULAR RF
Titan iRepeater Planning and Scalable System Architecture
Titan is not only a standalone repeater. StellaPlanner, StellaControl and LineAmp expansion can be used together to design and operate scalable indoor mobile coverage systems for large buildings.
Pre-Installation RF Planning with StellaPlanner
Building plans can be uploaded and repeater, antenna, splitter and cable routes can be positioned before installation. This helps evaluate equipment locations, cable lengths and RF distribution architecture in advance.
Computer and Mobile Access with StellaControl
Authorised users can review system status, performance history, alerts and supported operating parameters from a computer or mobile device through the web-based StellaControl environment.
Scalable RF Distribution with LineAmp
Large, multi-storey and multi-zone installations can be extended using LineAmp amplifiers and suitable RF distribution components. The required number of LineAmps, splitters, cables and indoor antennas should be determined from the RF design.

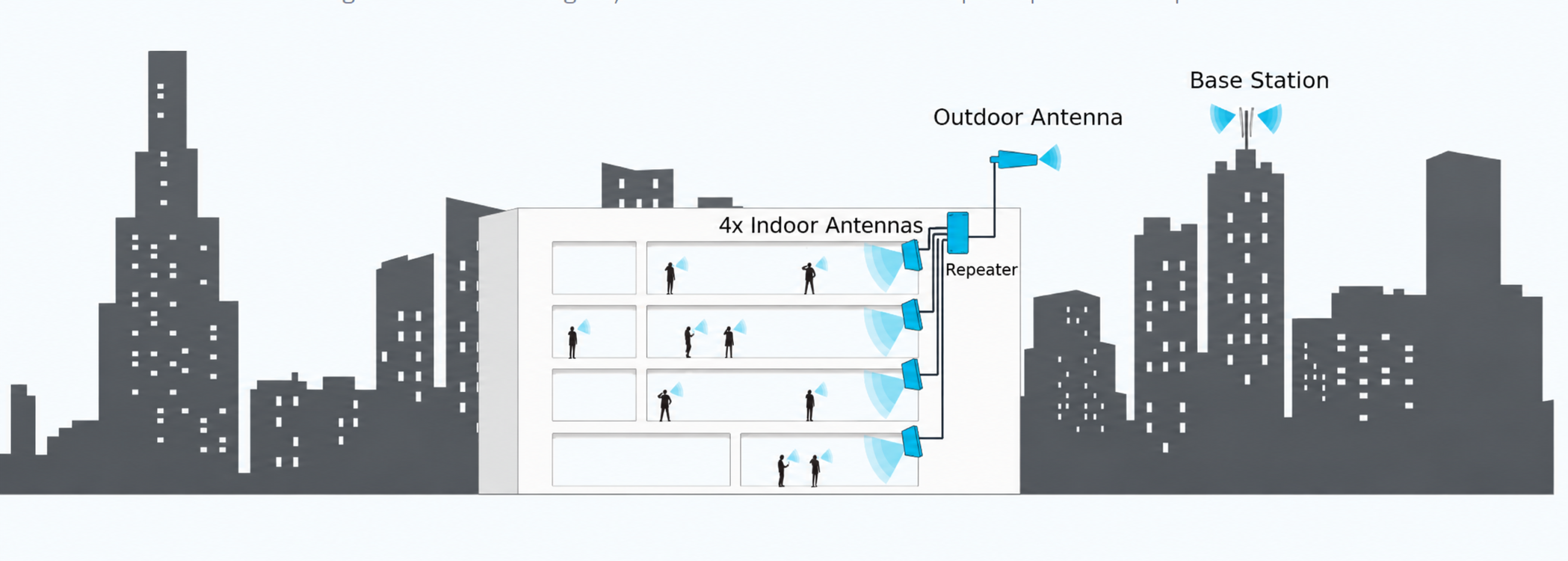

BUILDING COVERAGE ARCHITECTURE
From Donor Signal to Indoor Antenna Distribution
The Stella Doradus Titan iRepeater receives a usable outdoor operator signal through a donor antenna, amplifies the selected cellular bands and distributes the RF signal through indoor antennas. Larger systems can be extended with LineAmps and passive RF components.
