No SIM Card Required
The repeater relays the available operator RF signal; a customer SIM card or fixed broadband connection is not required for RF amplification.
Office Repeater
RED Certified Full Band Repeater
GSM | 3G | 4G | 5G
B1 | B3 | B8 |B20 | B28
COMMERCIAL-GRADE CELLULAR REPEATER
Stella Doradus Office Repeater
RED-certified full-band repeater for offices and commercial buildings
GSM | 3G | 4G | 5G · B28 | B20 | B8 | B3 | B1
The Stella Doradus Office Repeater is a commercial-grade cellular repeater designed to improve indoor mobile coverage in offices and commercial buildings. It supports voice and mobile data services across the operator bands included in the selected model.
Four indoor antenna ports allow the amplified signal to be distributed into several internal areas. Depending on room size, building geometry and RF losses, the system can typically serve multiple rooms from a single repeater platform.
Designed and Manufactured in Ireland
Stella Doradus repeater systems are engineered and manufactured in Ireland for professional indoor mobile coverage applications.
RED-Certified Platform
Designed for professional deployment in accordance with applicable European radio equipment requirements and Stella Doradus system specifications.
SYSTEM OVERVIEW
Office Repeater Features and Models
The Stella Doradus Office Repeater is available in several band combinations to match different operator spectrum requirements. All models provide four indoor antenna ports for multi-room RF distribution.
- Commercial-grade indoor cellular repeater for offices and commercial buildings.
- Supports the operator bands included in the selected model.
- Four indoor antenna ports for multi-room coverage distribution.
- PortSense support for antenna and cable connection checking.
- Network-protection functions including oscillation detection and automatic gain control.
- Supports voice and mobile data services on amplified bands.
- No customer SIM card required for the RF repeater function.
| Model | Supported Bands | Frequencies | Indoor Ports |
|---|---|---|---|
| R5-O | B28 / B20 / B8 / B3 / B1 | 700 / 800 / 900 / 1800 / 2100 MHz | 4 |
| R3-O | B20 / B8 / B3 | 800 / 900 / 1800 MHz | 4 |
| R2-O | B20 / B8 | 800 / 900 MHz | 4 |
HOW IT WORKS
Outdoor Donor Signal to Indoor Multi-Room Coverage

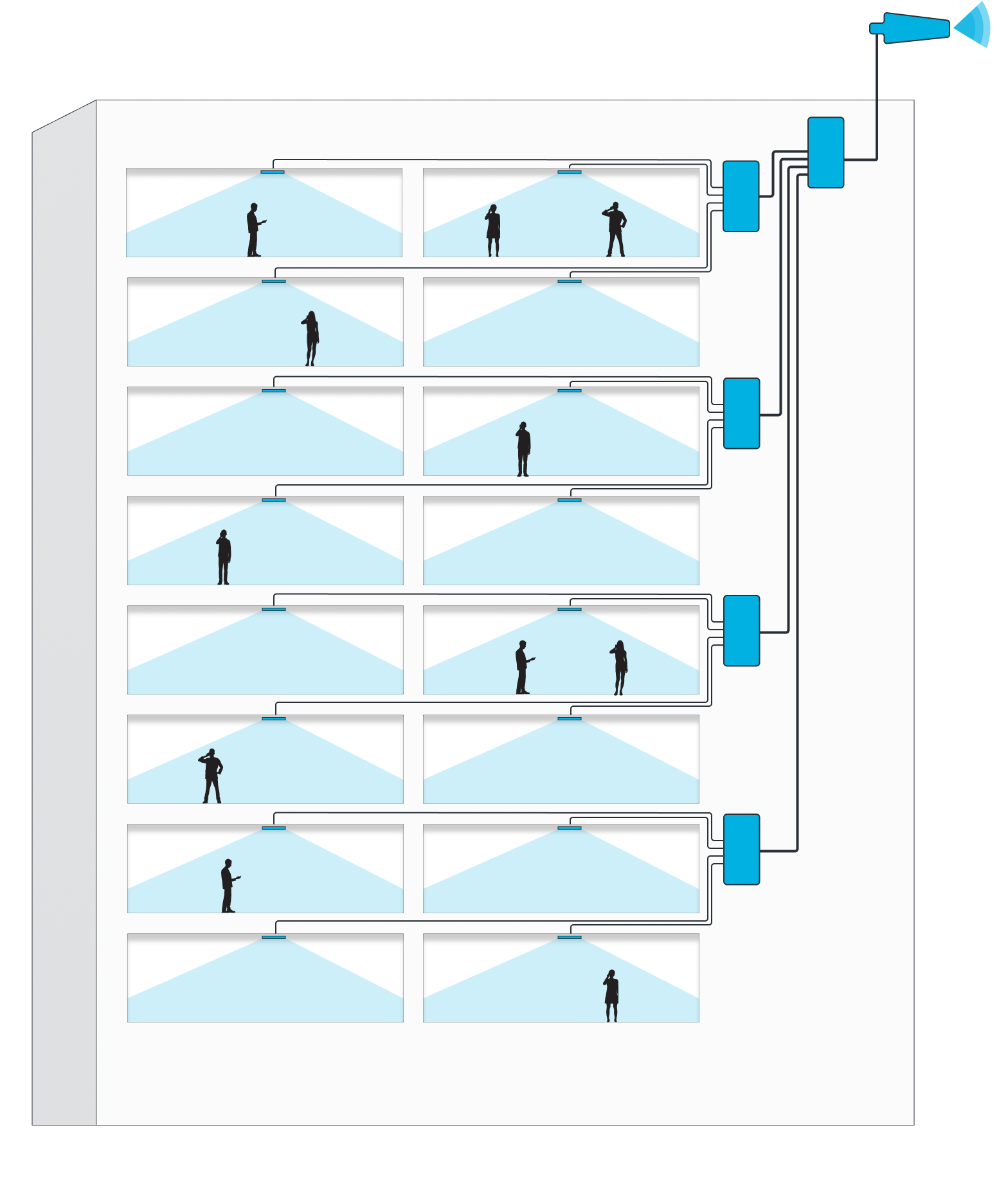

An outdoor donor antenna receives a usable mobile signal from the operator network. This signal is carried to the Stella Doradus Office Repeater, where it is amplified and distributed to indoor antennas installed in the required areas.
Correct donor-antenna placement, sufficient isolation between outdoor and indoor antennas, suitable RF cable routing and proper commissioning are essential for stable repeater operation.
NETWORK PROTECTION
Automatic RF Control for Stable Operation
The Stella Doradus Office Repeater includes control functions designed to reduce the risk of oscillation, excessive uplink power and unstable RF conditions.
Oscillation Detection
If donor and indoor antennas are installed with insufficient isolation, the repeater can detect feedback conditions and reduce gain to help maintain stable operation.
Automatic Gain Control
The repeater continuously adjusts operating gain to maintain appropriate signal levels and avoid unnecessary RF output toward the mobile network.
Uplink Activity Control
Uplink transmission is managed according to communication activity, helping reduce unnecessary RF noise when no active voice or data session is present.
Base-Station Level Detection
The repeater adapts its operating level according to the detected donor signal, increasing or reducing gain as required by the RF environment.
PORTSENSE
Stella Doradus PortSense Technology
PortSense is a Stella Doradus technology that helps automatically detect the connection status of the indoor and outdoor antennas connected to the Office Repeater. White LEDs on compatible Smart Antennas and repeater antenna ports allow the connection status to be checked quickly during installation.
When the cables, connectors and antennas are connected correctly, the corresponding LEDs illuminate. If an LED does not illuminate, the RF cable, connector or antenna connection may need to be checked. This makes it possible to identify connection problems more quickly during installation.
PortSense status can also be monitored through StellaControl. If the system detects a connection problem, it can be followed remotely through the monitoring and alert functions.
